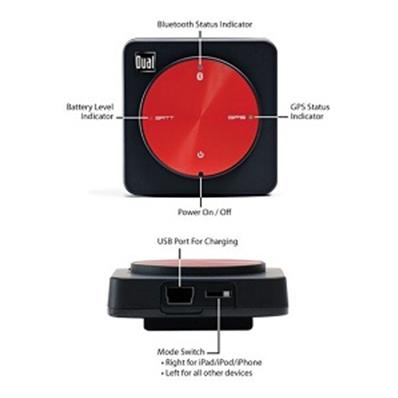

Dual Electronics XGPS160 Multipurpose Universal Bluetooth GPS Receiver Wide Area Augmentation System Your highly sensitive XGPS160 GPS Receiver allows you to connect to both GPS (USA) & GLONASS (Russian) systems and to numerous satellites providing accurate and reliable GPS coordinates within +/- 2.5m CEP, Max Speeds of 1,150 mph and Max Altitude of 65,600 ft. Building a GPS/GNSS Receiver Using MosaicHAT and Arduino by jamalhazem98 in Arduino 30 4.5K Paper Circuit Reaction Game by BrownDogGadgets in Gadgets. Plug in your iPhone or Android device, and the 6.8 in. If your phone is tucked away, you can still use this receiver's built-in Bluetooth for wireless convenience. See details - Kenwood DMX47S Double-Din In-Dash 6.8-Inch Multimedia Receiver With Bluetooth. The exact steps may vary by phone: Open 'Settings' on your Android device. Locate your option for 'Location', 'Privacy and Security' or something similar. Most phones will have 3 options - use GPS and networks, networks only and GPS only.
Marshall GPS System
The Marshall GPS System is hands down, the fastest and safest way to track and recover your Bird. No longer are you left guessing when your raptor is out of sight.
How does it work?
The Marshall GPS System consists of three main components. The RT GPS Transmitter, the PocketLink Data Receiver, and the AeroVision App on your iPhone or iPad. The RT-GPS transmitter is the same size, shape and weight of our RT transmitters, but inside we found a way to incorporate a tiny GPS receiver. With a clear view of the sky, the RT-GPS learns where it is and then sends this data via radio frequency to a data receiver we call the Pocketlink. It is the PocketLink that in turn forwards this situational data it is receiving to our App on your iPhone or iPad over Bluetooth. At the same time, the RT-GPS is sending a beeping signal in the UHF band that can be received by the Field Marshall for regular direction-finding.
The PocketLink can be used with either the included small whip antenna (ultra portable for use in the field in your pocket or hawking bag) or be left in the vehicle connected to the optional High Gain Omni (for maximum tracking range).
The Turbo GPS communicates like the RT-GPS, however when the transmitter goes out of range of the PocketLink, it automatically kicks on the Turbo after 30 seconds of no contact. This allows 2-3 times the range with very little impact to battery life making it capable of sending the GPS data at great distances using situational awareness and intelligent response. When the transmitters comes back into range of the PocketLink again, it will automatically turn off the Turbo Mode.
GPS BATTERY LIFE
The user configurable modes available within AeroVision allow the RT GPS to run for up to a week on the rechargeable battery. Mixed mode use can be configured for several hours of high update GPS plus many hours of lower update rate tracking. Default settings the battery life is 2-3 days.
GPS Transmitter
- Weight: 9 grams with battery installed
- Battery used: rechargeable Lithium Battery (user swappable)
- Battery Life: 2-3 days with configurable modes to allow up to 7 days
- Antenna: 7 inch end-fed dipole diplexed with GPS
- RT-GPS Range: 1 to 30 miles*
- Turbo GPS Range: 2 to 100 miles*
*Measurements of distance are quoted using an Omni antenna. Conditions are variable depending on terrain and obstacles.
POCKETLINK BATTERY LIFE
The rechargeable lithium battery in the PocketLink lasts for 30+ hours, and is charged via a micro USB port. Since the battery has built in intelligence, there is no “memory” and you can also leave it plugged in to the vehicle at all times to stay “topped-off” and ready to leave if needed.
PocketLink
- Weight: <12 oz
- Battery used: 3.7V LiPo internal (rechargeable through Micro USB cable provided)
- Battery life: 30+ hours
- Antenna connection: SMA
- Range: up to fifty (50) feet via Bluetooth LE to iOS device
ADD AN OMNI TO YOUR SYSTEM
The PocketLink uses an SMA connector for quick attachment to Marshall’s UHF Omni antennas. Also availalbe as an option for those hawking away from the car is an SMA-SMB adapter cable that allows the UHF Yagi on your Field Marshall UHF receiver to be used to boost range while on foot in the field.
DEVICES TO USE WITH YOUR SYSTEM
AeroVision Mapping App (downloadable from iTunes) requires:
- iPad Mini: Gen 2 or newer (cellular enabled)*
- iPad Air, iPad Air 2 (cellular enabled)*
- iPad Mini 4 (cellular enabled)* Recommended
- iPhone: 6 and newer
- iPhone 7 Plus or newer Recommended
* Note: Apple products are not sold by Marshall Radio. Also important: a cellular enabled iPad is required in order for it to have the needed GPS functions. However, you do not need to enable the cellular data plan to use AeroVision.
Iphone As Gps Receiver
RECOMMENDED ITEMS TO ADD TO YOUR SYSTEM
Use Iphone As Gps Receiver For Ipad
- Field Marshall UHF receiver
- UHF Turbo/RT/ or Micro (recommended as the secondary backup transmitter)
The Field Marshall Receiver allows you to track the beeping signal of your GPS transmitter or when you are in “Plan B Mode” the UHF receiver is needed to track your backup UHF regular telemetry transmitter.
The difference between our GPS system and other GPS devices for falconers
Four main ways, in combination:
- The size is less than half. This means it can be used as a leg or tail mount where other designs are far too large.
- The method is a direct connection, not dependent on nearby mobile towers, so it can be used anywhere without fear of “dead zones.” There is no SIM card to buy, therefore no waterproofing issues or further costs from text requests, etc. required to operate it. Simple. Reliable.
- Instead of periodic updates, delayed or irregular response to text inquiries this is real-time data streaming. You see where you bird is now, not just where it was.
- Our own innovative custom mapping application developed in-house makes it a joy to watch the flight, not a distraction. And you can also Replay or Share your flights (the same tracks and stats) with friends.
Iphone As Gps Receiver For Sale
These key features have not been available until now.
What are the regulations in the US and Canada for using the UHF bands?
The use of the 434 (or UHF) band in the USA & Canada requires the user to apply for a Ham Radio License (easily attainable by paying a small fee and passing a written test). Once done, the user is now a legal ‘station’ and is able to use the quiet UHF band and at much higher power levels. To legally use telemetry on this band, your transmitter must broadcast your station ID (Ham Radio Call Sign, a feature exclusive to Marshall transmitters). You simply enter your call sign or temporary station ID (phone number) into AeroVision.
Gps Puck For Ipad
If you do not have an Amateur Radio License, you might be surprised how easy it is to obtain one. Pass a simple test, for which you can study all the answers in advance, pay ten dollars and with and 80% passing grade, you have a ten-year license, new knowledge about Radio Telemetry and the authorization to use the non-commercial bands (such as 433-434) not only for tracking but communication and emergencies.
Iphone As Gps Receiver Map
For those wanting to find out what’s required to get a HAM License, here’s a great place to start: How to get your Amateur Radio License
